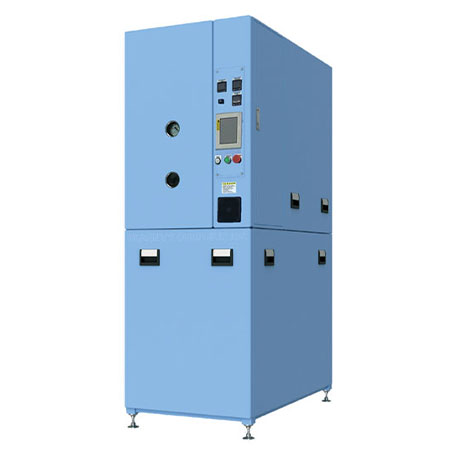

VACUUM DISTILLATION REGENERATOR CD SERIES

CD SERIES

High safety and Easy maintenance!

Features

    • Solvent recovery rate 98% or more (our test data with solvent dirt 1 Vol% or less)
    • High safety because distillation unit work in vacuum state
    • The distillation unit has a structure that is easy to clean and maintainability is good.
    • Heating oil life is 6,000 hours (3~4 times that of other companies)

    Heating oil cost, replacement frequency and downtime reduce to 1/3 ~ 1/4

    • Extensive lineup of distillation regeneration capacity from 40L/H to 500L/H

Distillation capacity (L/h)

Lineup Class 2 petroleum Class 3 petroleum
CD-500 400~500 270~350
CD-400 320~400 220~280
CD-300 240~300 170~210
CD-200 160~200 110~140
CD-110 80~100 55~70
CD-40 30~40 20~30
The distillation reproduction amount changes depending on the type of solvent and the amount of dirt,
so, the above distillation amount is not guaranteed.

Standard specifications

Lineup CD-40 CD-110 CD-200
Solvent for distillation hydrocarbon solvent and non water solvent
Heating method Indirect heating with heating oil (or steam heating)
Power 3-phase 200V 50/60Hz
Safety measures pump Improved explosion resistance
control panel explosion resistance by air purge
Machine dimesions WxDxH (mm) main unit 600x900x1700 720x1200x2000
Machine weight main unit 270kg 430kg
