Hydrocarbon-Based One-Bath Type Cleaning/Drying Machine
Upper Loading/Unloading

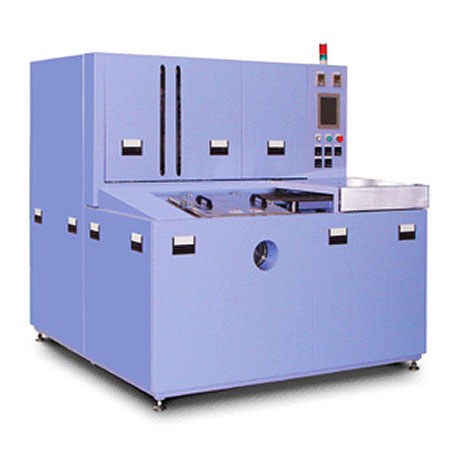

CLOVA

CLOVA is a compact and low-cost model which adopts multi-bath’s technology and experience.
It can perform 4 process of a 3-bath automatic machine in a single Bath. (Upper Basket/ Input type)

Washable

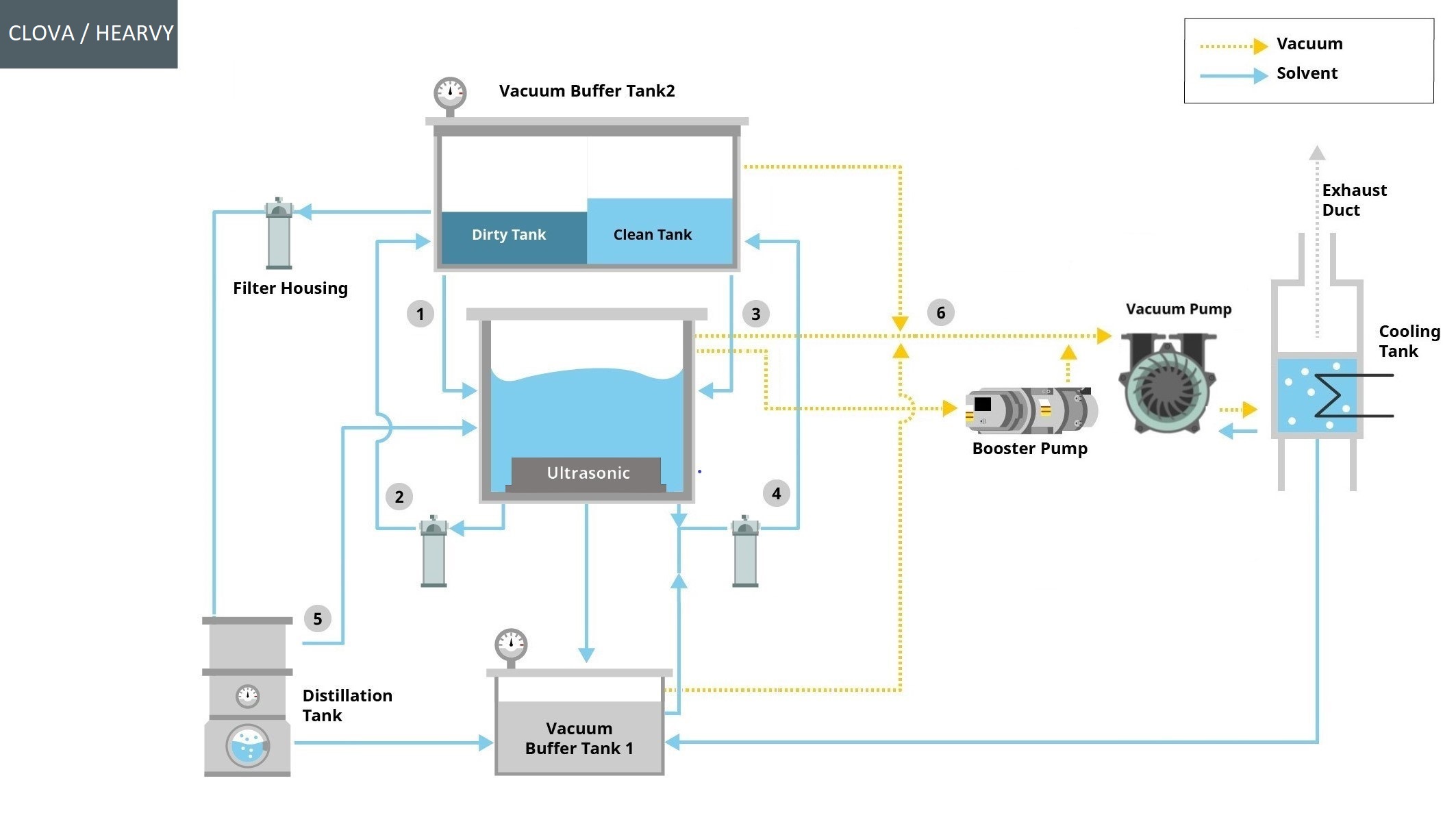

• The process is fully automated

1st process:  rough vacuum ultrasonic washing
2nd process: finish vacuum ultrasonic washing
3rd process: vapor washing
4th process: vacuum drying

• Since the solvent does not touch the atmosphere at all, the solvent can be warmed enough. So the cleaning performance normally become better.
• Rough and finished vacuum ultrasonic cleaning are also effective for cleaning parts with blind-hole and parts sticky each other
• Distillers have higher distillation capacity than other companies and can be washed even with workpieces with fully of oil

Dryness/Running Cost

• unique vacuum drying system achieves high dryness and solvent recovery
• Low solvent consumption and significant reduction in running costs
• Vacuum pumps are maintenance-free, less faulty, and more reliable than dry pumps
• Heat medium oil life is reduced by 6,000 hours (= 3 to 4 times that of other companies) Heat medium oil cost, replacement frequency and downtime reduced by 1/3 to 1/4

Safety

• 4 processes of this machine type are carried out under vacuum. systems with low oxygen levels and extremely high safety

Standard specifications

Lineup	CLOVA-4030	CLOVA-6040
Basket size - Square: WxDxH (mm) - Rotation: φ x L (mm)	400x300x200 270x360	600x400x300 370x560
Ultrasonic	25kHz 1000W	25kHz 2000W
Vacuum pump	3.7kW	5.5kW
Booster pump	0.4kW	1.5kW
Distillation Unit	100L/h	200L/h
Holdings of solvent	300L	795L
Holdings of heating oil	30L	45L
Machine dimesions: WxDxH (mm)	1700x1720x1700	2020x2270x2100
Machine weight	1600kg	4000kg

* Ultrasonic can be changed to 40kHz
* Option:
Rotation function / Rotation basket
CO2 fire distinguisher
Basket Transfer unit
