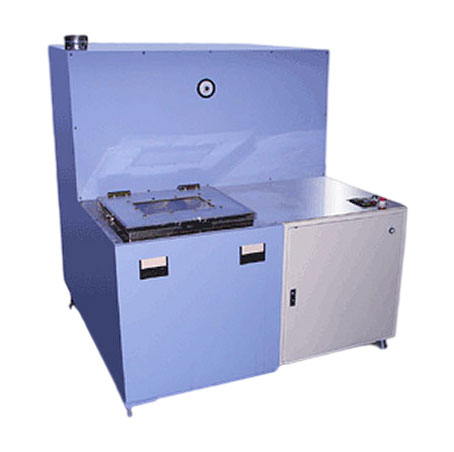

Suction Dryer

Vac Dry

Our unique high-speed suction drying system

Drying

• Strong suction + large air volume
• Reduced drying stains because of good liquid cutting performance
• Significantly reduced drying time compared to other companies' hot air circulation methods (about 5 minutes)

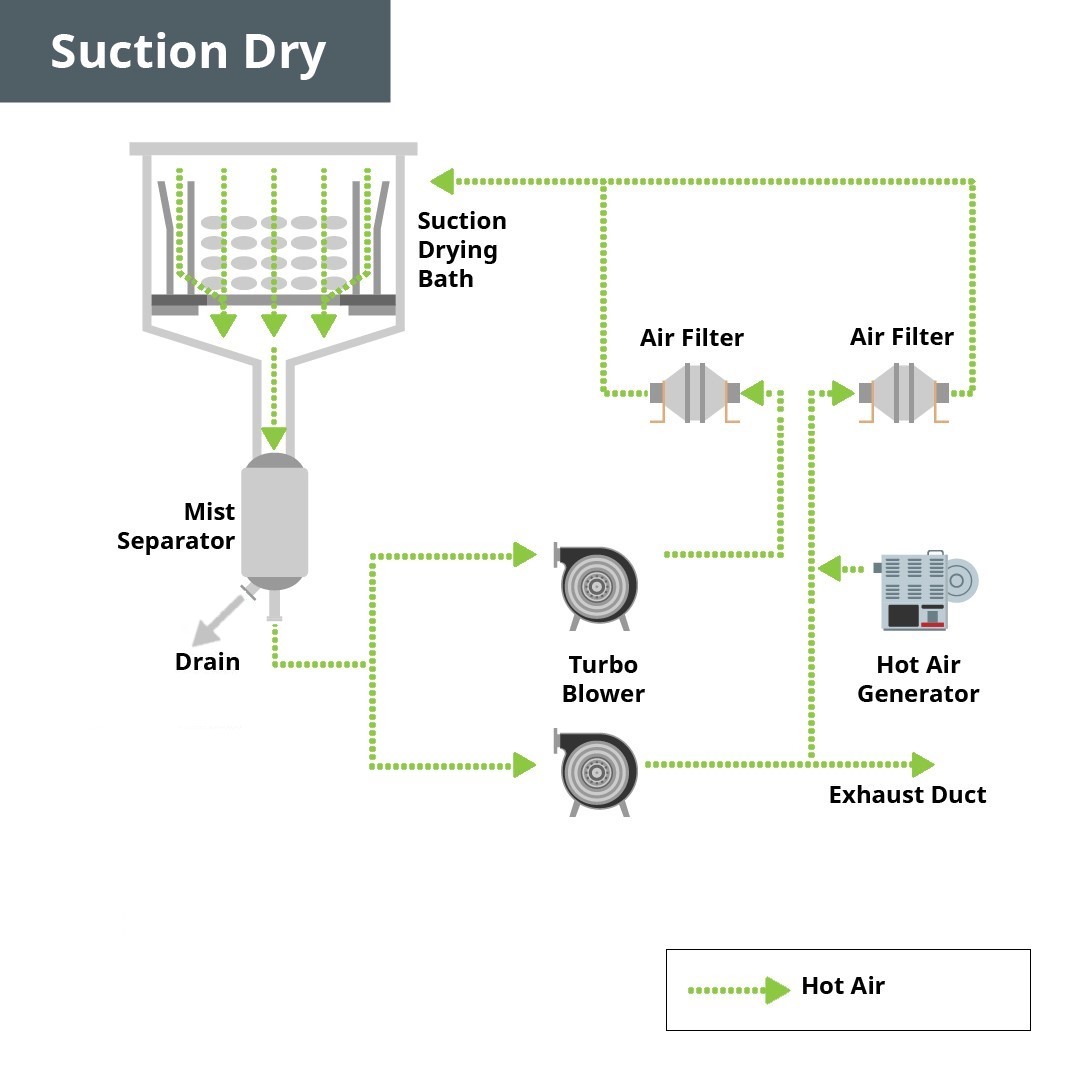

CLEANVY’s unique point of Suction drying

1. Suction blower	Multi-stage turbo blower is loaded	High suction power High air volume
2. Mist separator	Centriduge-type separator is loaded	High mist removal performance Low pressure drop
3. Partition plate & Shield plate		Optimizing the flow path

Standard specifications

Lineup	KS-4030	KS-4040
Basket Size WxDxH (mm)xx	400x300x200	400x400x200
Air volume (m3/min)xx	28	35
Temperaturexx	60~100℃

*Option: Rotation function, Rotation basket
